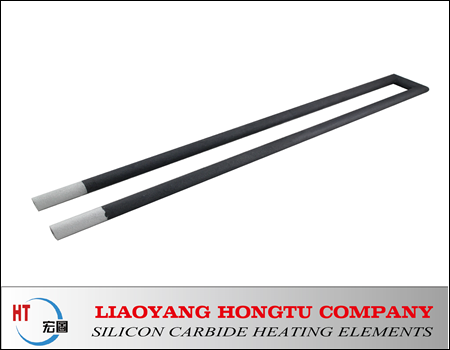

U type silicon carbide heating rod, up to 1450℃

Sic electric heating elements also called as Silicon Carbide rod that made of top-quality silicon carbide. Technology, as main features, silicon carbide rod has a higher working temperature and chemical stability and thus a longer life. In addition to easy installation, it needs less maintenance and gets less deformed under high temperatures.

1450℃ SiC heating element/ SiC heater /Silicon Carbide Heating Rod is made of top quality green silicon carbide which is characterized by high-applied temperature, anti-oxidization, anti-corrosion, long service life, little deformation and easy installation & maintenance.

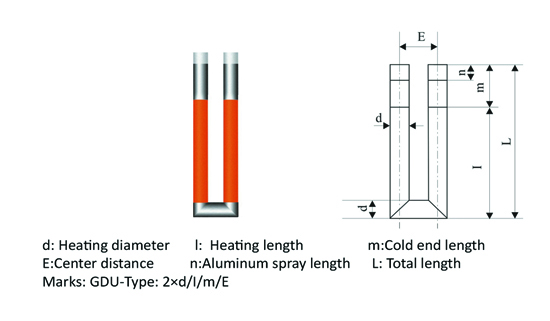

 u-stype silicon carbide heater drawing

Features of SiC electric heating elements

* work at temperature up to 1450c

* 2500 hours continuous using

* varies of dia 8-70mm



Technic Data of  SiC electric heating elements Shipping way



OD( mm)

HZ(mm)

CZ(mm)

OL(mm)

Resistance (ohms)

8

100-300

60-200

240-700

2.1-8.6

12

100-400

100-350

300-1100

0.8-5.8

14

100-500

150-350

400-1200

0.7-5.6

16

200-600

200-350

600-1300

0.7-4.4

18

200-800

200-400

600-1600

0.7-5.8

20

200-800

250-600

700-2000

0.6-6.0

25

200-1200

250-700

700-2600

0.4-5.0

30

300-2000

250-800

800-3600

0.4-4.0

35

400-2000

250-800

900-3600

0.5-3.6

40

500-2700

250-800

1000-4300

0.5-3.4

45

500-3000

250-750

1000-4500

0.3-3.0

50

600-2500

300-750

1200-4000

0.3-2.5

54

600-2500

300-750

1200-4000

0.3-3.0

58

600-2500

300-750

1200-4000

0.3-3.3

64

600-2500

300-750

1200-4000

0.3-3.6

70

600-2500

300-750

1200-4000

0.3-3.6



Packaging Details:

 Inner: foams covers each piece good and be packed in wooden carton.

Outside: wooden cases



Delivery Details:

5-10 days after receiving the payment



Details for quote and order

* Type / shape

* Size : OD,ID,HZ,CZ,OL (pls mark if special resistance you need)

* Quantity
